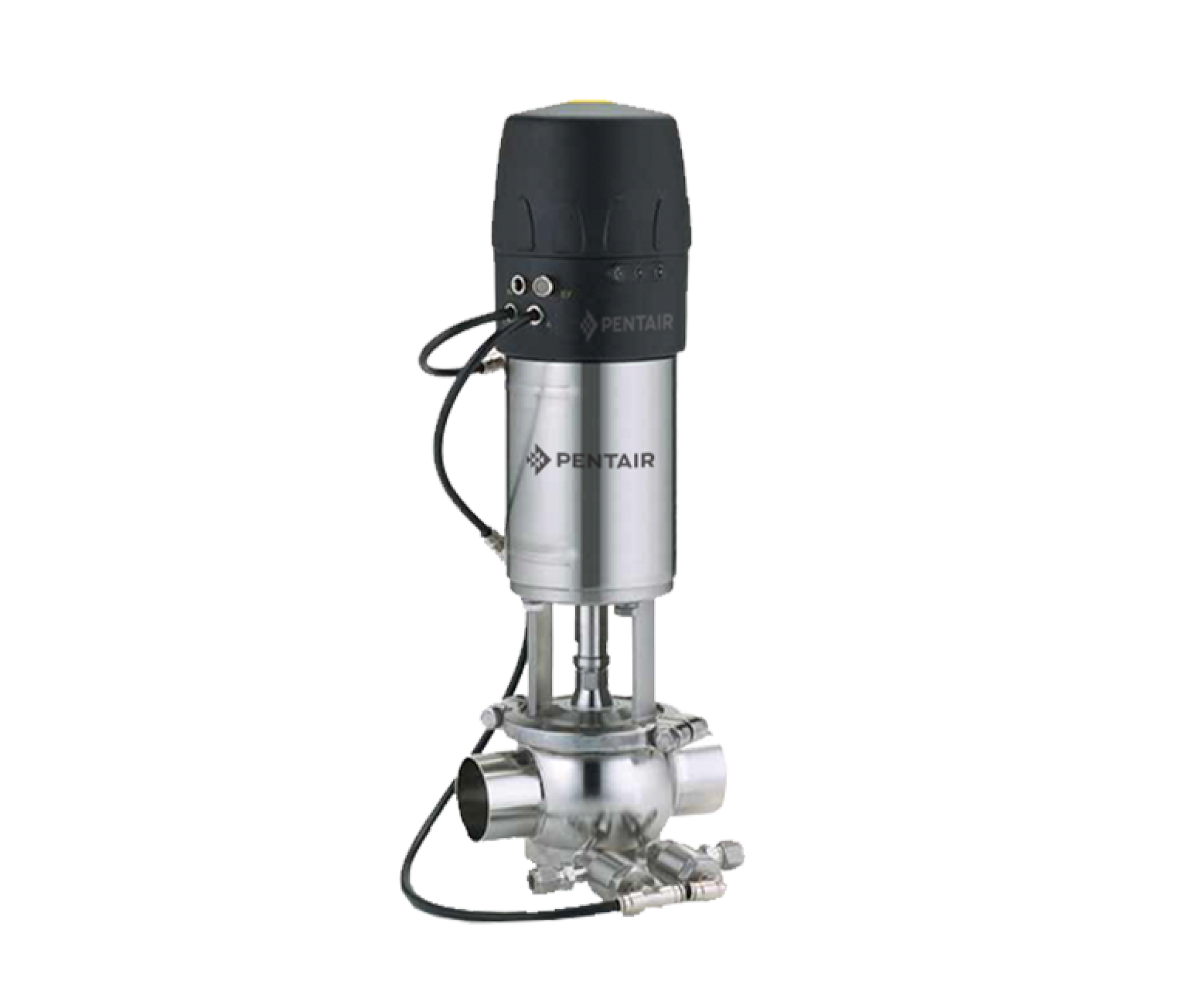

DOUBLE SEALED VALVES F269J+

BENEFITS

• Free discharge design eliminates product buildup and air pockets.
• Smooth spherical bodies reduce turbulence and improve flow.
• Smooth internal surfaces for easy cleaning.
• Maintenance-friendly design.
• Reversible actuator.

FEATURES

• Product contact parts manufactured from high-quality 316L S/S rod.
• Heavy-walled body structure.
• Semi-bright external surface coating.
• Compact, lightweight design.
• Heavy-duty type cast body flanges (bolted type).
• Various sealing options are available.
• Seat material FPM.
• Metal plug stop protects socket gaskets against wear or damage.
• Flexible seating for positive isolation.
• Leakage chamber between gaskets.
• Flanged body style offers full 360° actuator orientation.
• Butt-welded three-way connections.
• Threaded/quick-connect type liquid connectors to CIP vertical valves supplied with the valve.

OPTIONS

• Mirror polished interior
• Clamp and threaded three-way connections
• Manual operating device
• 3-position actuator
• Booster actuator
• Control top or feedback unit
• Quick-opening body flanges

```html

Südmo Double Seat Solenoid Valves are operated with compressed air through a linear pneumatic actuator that can be supplied with or without springs. The idle position of the valve, although normally closed (lower position), can also be provided as normally open (upper position), which is determined by the actuator mode being Spring Extend (SE) or Spring Retract (SR), respectively as selected during ordering. The mode can also be easily changed in the field by reversing the actuator assembly. When air pressure is applied to the cylinder, two small pneumatic normally open (NO) poppet valves, a leak detector and a CIP valve instantly close and the main valve seat moves the valve from the closed position to the open position throughout the entire stroke.

When air is removed from or exhausted from the cylinders, the main valve closes, then the two small valves open and thus vent and exhaust the leak chamber to the atmosphere. When the main valve is in the closed position, the leak chamber can be washed with water or CIP to clean product residues. When the valve is in the closed position, while one side of the valve can be cleaned with CIP, the product on the opposite side is fully protected from possible contamination thanks to the double seal and leak chamber.

```

Südmo Çift Salmastralı Valfler, gıda işleme, konserve fabrikaları, şarap imalathaneleri, mandıra, bira, ilaç, içecek ve kimya endüstrilerinde proses veya CIP sıvılarını kontrol etmek için kullanılabilir. Bu hijyenik valfler, Easymind Elektronik Kontrol Üstü ile kolaylıkla otomatik hale getirilebilir.
