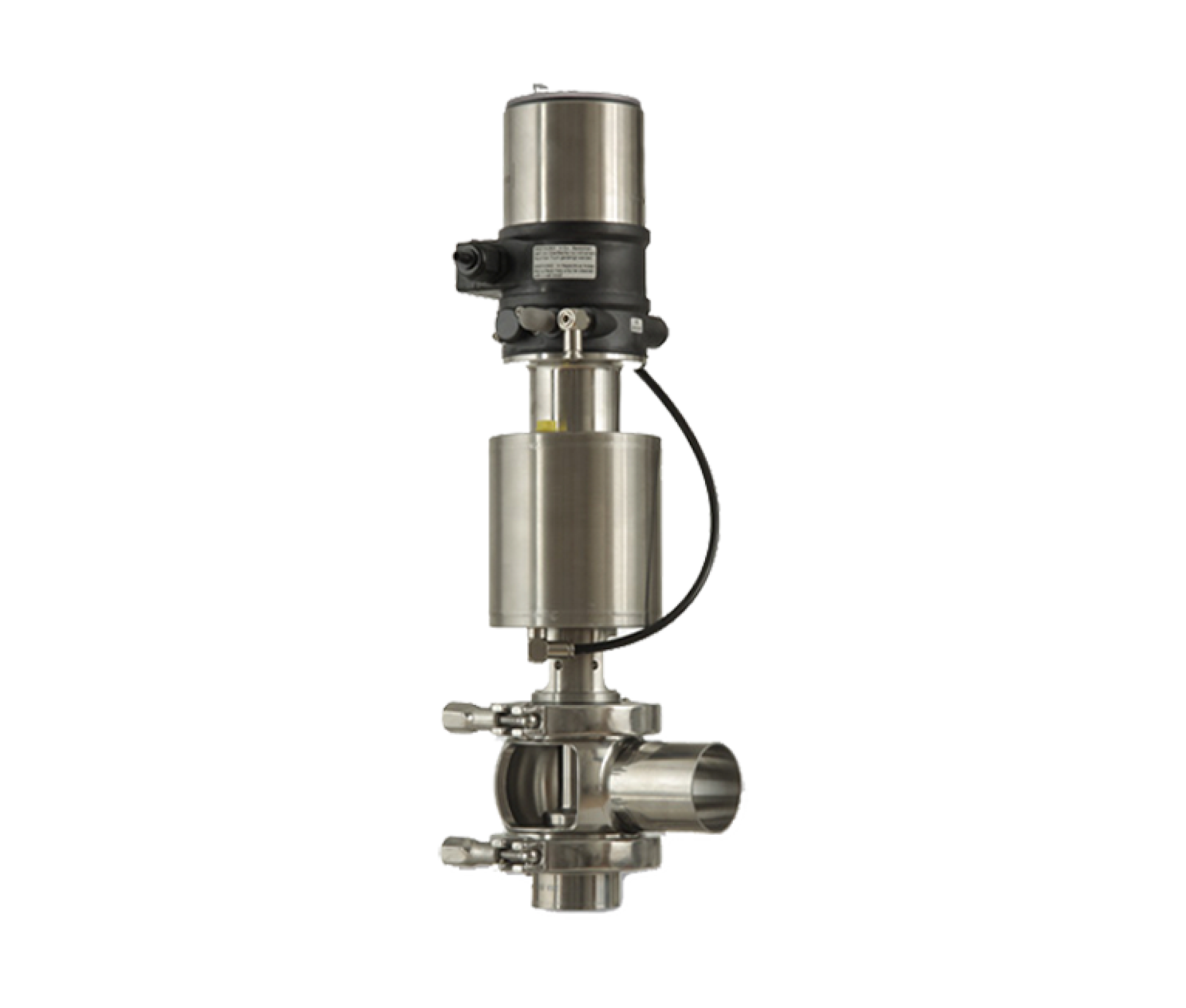

CONTROL VALVES
Stainless Steel Valves

CONTROL VALVES

```html

  • P³ diaphragm aseptic valve option
  • Regulation with linear or equal percentage control plug (interchangeable afterwards)
  • Standard, three different KV values per nominal diameter available (more KV values on request)
  • It is possible to change KV values afterwards by replacing the plug and seat (for this, separable connections must be provided on all connection ports)
  • Control plug with or without tight shut-off function (metal seat or o-ring seal)
  • High precision membrane actuator with electropneumatic position controller
  • "8692" control head SVP standard actuator (cost-effective alternative suitable for membrane actuator)
  • "8692" control head, optional PID controller can also be used in independent operation, for example in connection with a temperature or flow rate meter.
```

```html

Pentair Südmo has not only designed a Control Valve that is operated manually only for extremely sensitive processes that need to be controlled quickly, such as in-line dosing of concentrates, but also designed a Control Valve that operates with a diaphragm. Additionally, we also offer Pentair Südmo Control Valves with SVP actuators and digital control caps as an economical alternative to diaphragm actuators.

A general advantage of the Pentair Südmo Control Valve design is that the digitally controlled peak SVP units and the control diaphragm with electropneumatic positioners are interchangeable with each other (even afterwards).

Additionally, two types of Mixing and Diverting Control Valves ideally complete the program. The concept combines two single control valves into a three-way valve. Depending on requirements and equipped with suitable cutting edges, mixing of two volume flows or diverting of a medium in two pipe lines can be achieved.

```

Kontrol vanasının çalışması için tipik uygulamalar, akış hızı kontrolü, sıvı ve gazların dozajlanması, sıvı borularında basınç regülasyonu, bölünmüş aralık kontrolleri, tampon tanklarında seviye kontrolü ve içecekler için karbondioksit dozajıdır.
