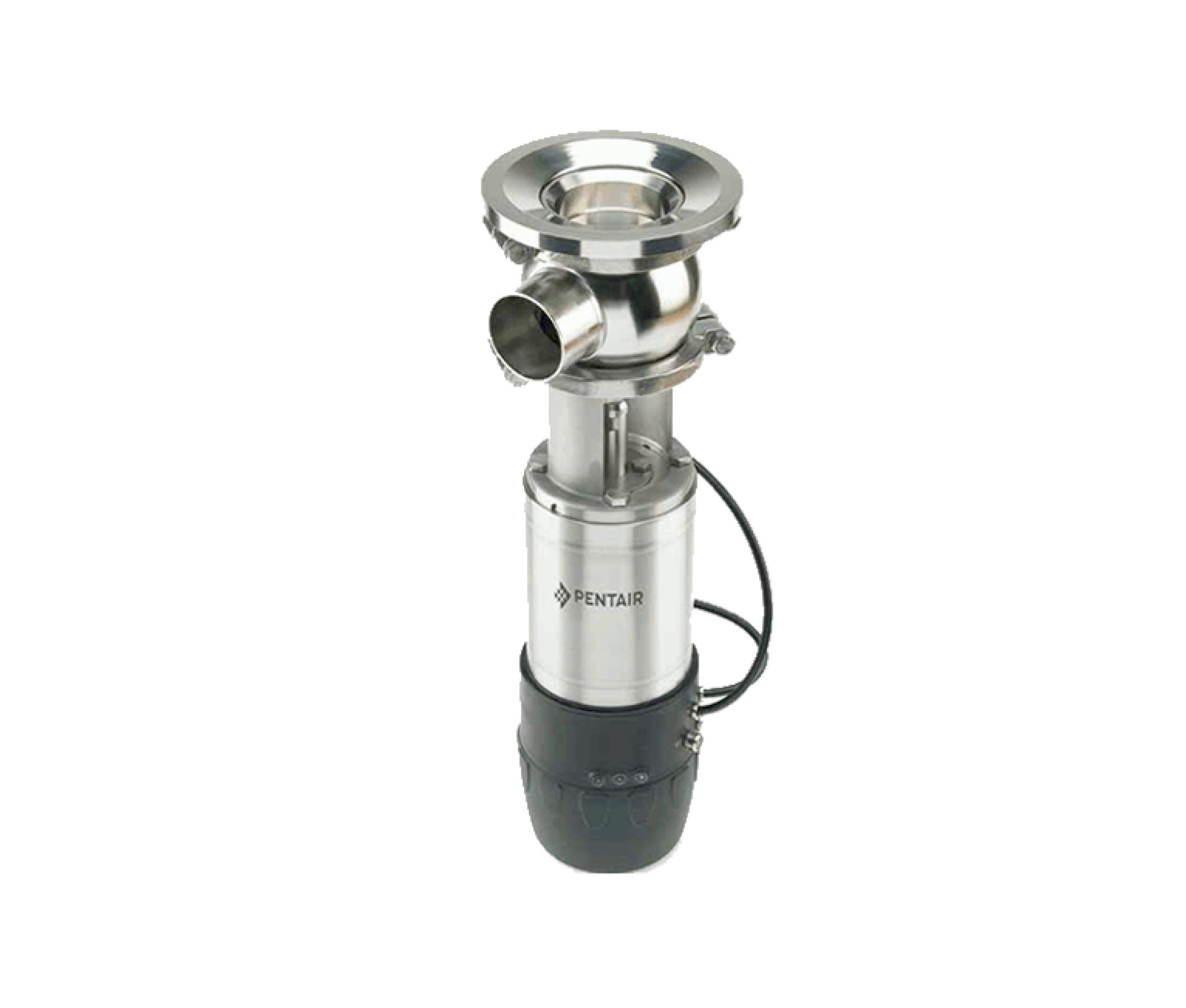

SINGLE BEARING TANK BOTTOM VALVES - F273J+
Stainless Steel Valves

SINGLE BEARING TANK BOTTOM VALVES - F273J+

```html


FEATURES



OPTIONS

    • Free discharge design eliminates product buildup and air pockets.
    • Smooth spherical bodies reduce turbulence and improve flow.
    • Smooth internal surfaces for easy cleaning.
    • Maintenance-friendly design.
    • Product contact parts are manufactured from high-quality 316L stainless steel rod.
    • Heavy-walled body construction.
    • Semi-polished external surface coating.
    • Compact, lightweight design.
    • Heavy-duty cast body flanges (bolted type).
    • Various sealing options are available.
    • Metal plug stop protects socket gaskets against wear or damage.
    • Many diverse connection port configurations are available.
    • Flexible seat for positive isolation.
    • Reversible actuator.
    • Flanged body style provides full 360° orientation of body connection ports.
    • End connections welded on forehead.
    • Mirror polished internal parts
    • Flange and threaded end connections
    • Manual actuator
    • 3-position actuator
    • Reinforced actuator
    • Control top or feedback unit
    • Quick-opening body flanges
```

Sudmo Single-Seat Tank Bottom Solenoid Valves are operated by compressed air through a linear pneumatic actuator or manual operator. When a spring is installed on the actuator, the static position of the valve can be provided in the normally open position despite being normally closed; this is determined by both the plug configuration used and timely selected and the combination of the actuator mode. Int. plug type will be terminated with a Normally Closed (NC) valve, therefore SE + Ext.= NO, Internal Spring (SR) actuator. plug type will be terminated with a Normally Open (NO) valve, therefore SR + Ext.= NC Mode, the actuator arrangement can be easily changed in the field by simply reversing it. (See separate Installation, Operation and Maintenance Instructions for details). When air pressure is applied to the cylinder, the valve plug moves throughout the entire stroke, transitioning from one state to another. From open to closed in the single-seat tank bottom valve case. These valves have only a few simple moving parts and this makes the valve very reliable in use.

Südmo Tek Koltuklu Tank Dip Valfleri, gıda işleme, konserve fabrikaları, şarap imalathaneleri, mandıra, bira, ilaç, içecek ve kimya endüstrilerinde tanklardan veya gemilerden çıkan ve giren proses veya CIP sıvılarını kontrol etmek için kullanılır.
