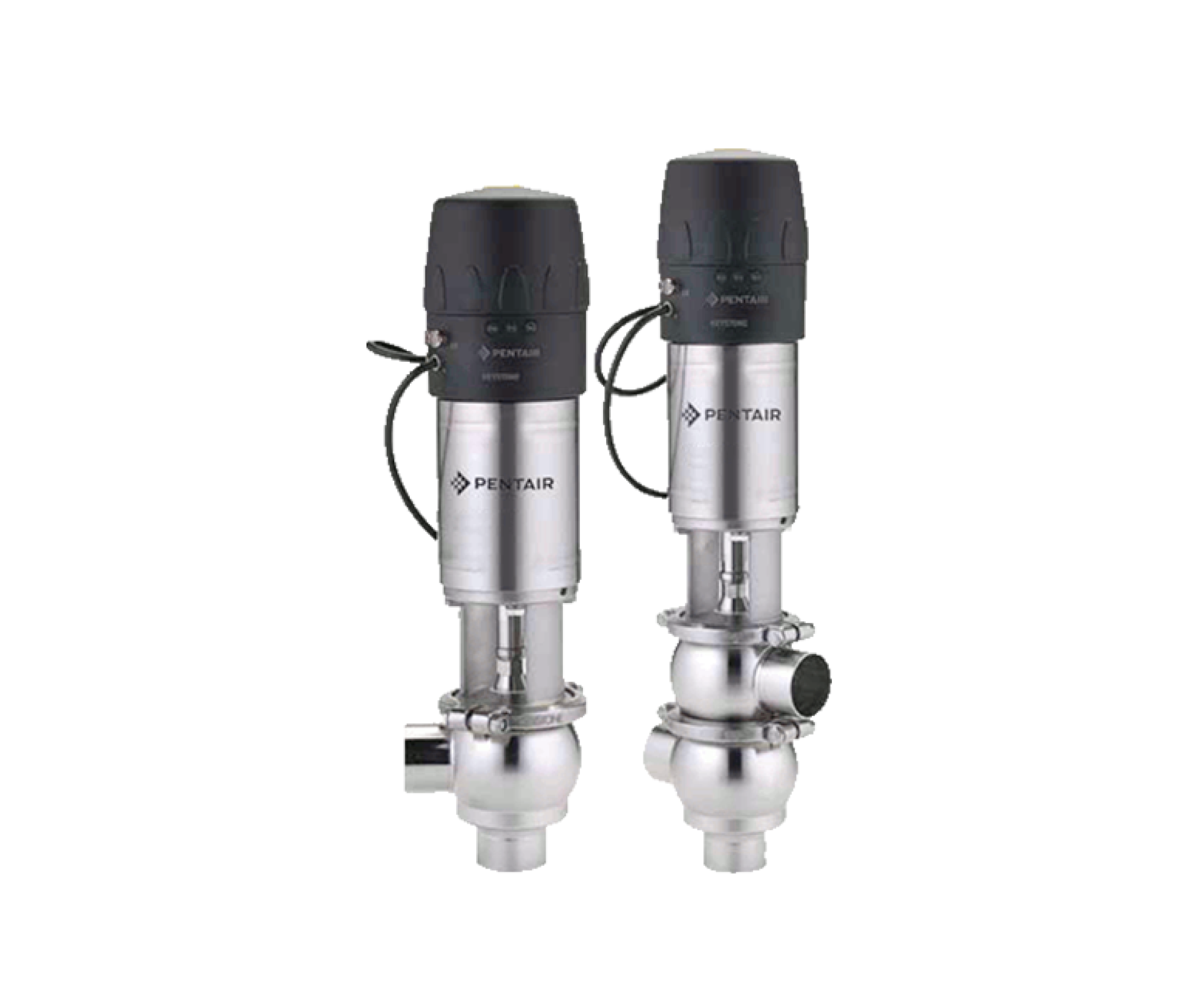

SINGLE BEARING VALVES F267J/F268J
Stainless Steel Valves

SINGLE BEARING VALVES F267J/F268J

```html

BENEFITS

  • Free discharge design eliminates product buildup and air pockets.
  • Smooth spherical bodies reduce turbulence and improve flow.
  • Smooth internal surfaces for easy cleaning.
  • Maintenance-friendly design.
  • Compact, lightweight design.


FEATURES

  • Product contact parts are manufactured from high-quality 316L stainless steel rod.
  • Heavy-walled body structure.
  • Semi-polished external surface coating.
  • Heavy-duty type cast body flanges (bolted type).
  • Various sealing options are available.
  • Metal plug stop protects cavity seals against wear or damage.
  • Many different connection port configurations are available.
  • Flexible seat for positive isolation.
  • Reversible actuator.
  • Flanged body style provides full 360° orientation of body connection ports.
  • Welded forged end connections.



OPTIONS

  • Mirror polished internal parts
  • Flange and threaded end connections
  • Manual operating device
  • 3-position actuator
  • Reinforced actuator
  • Control head or feedback unit
  • Quick-opening body flanges
```

Südmo Single Bed Valves are operated with compressed air through a linear pneumatic actuator that can be supplied with spring return or springless. The idle position of the valve, although normally closed (down position), can also be provided as normally open (up position); this is determined by the actuator mode being Spring Extend (SE) or Spring Retract (SR) selected during ordering.

The mode can also be easily changed in the field by reversing the actuator assembly. When air pressure is applied to the cylinder, the valve spool moves from one position to the other through the entire stroke. In the case of F267J+ changing from open to closed or vice versa and F268J+ changing the flow path from one direction to another.

Südmo Single Bed Valves have only a few simple moving parts, making it a very reliable valve in service.





Südmo Tek Yataklı Valfler, proses veya CIP sıvılarını kontrol etmek için kullanılır. F267J+ izolasyon için, F268J+ gıda işleme, konserve fabrikaları, şarap imalathaneleri, mandıra, bira, ilaç, içecek ve kimya endüstrilerinde akışları yönlendirmek veya yakınsamak için. Valfler manuel olarak çalıştırılabilir veya Figure 783 Easymind Elektronik Kontrol Üstü ile kolayca otomatikleştirilebilir
