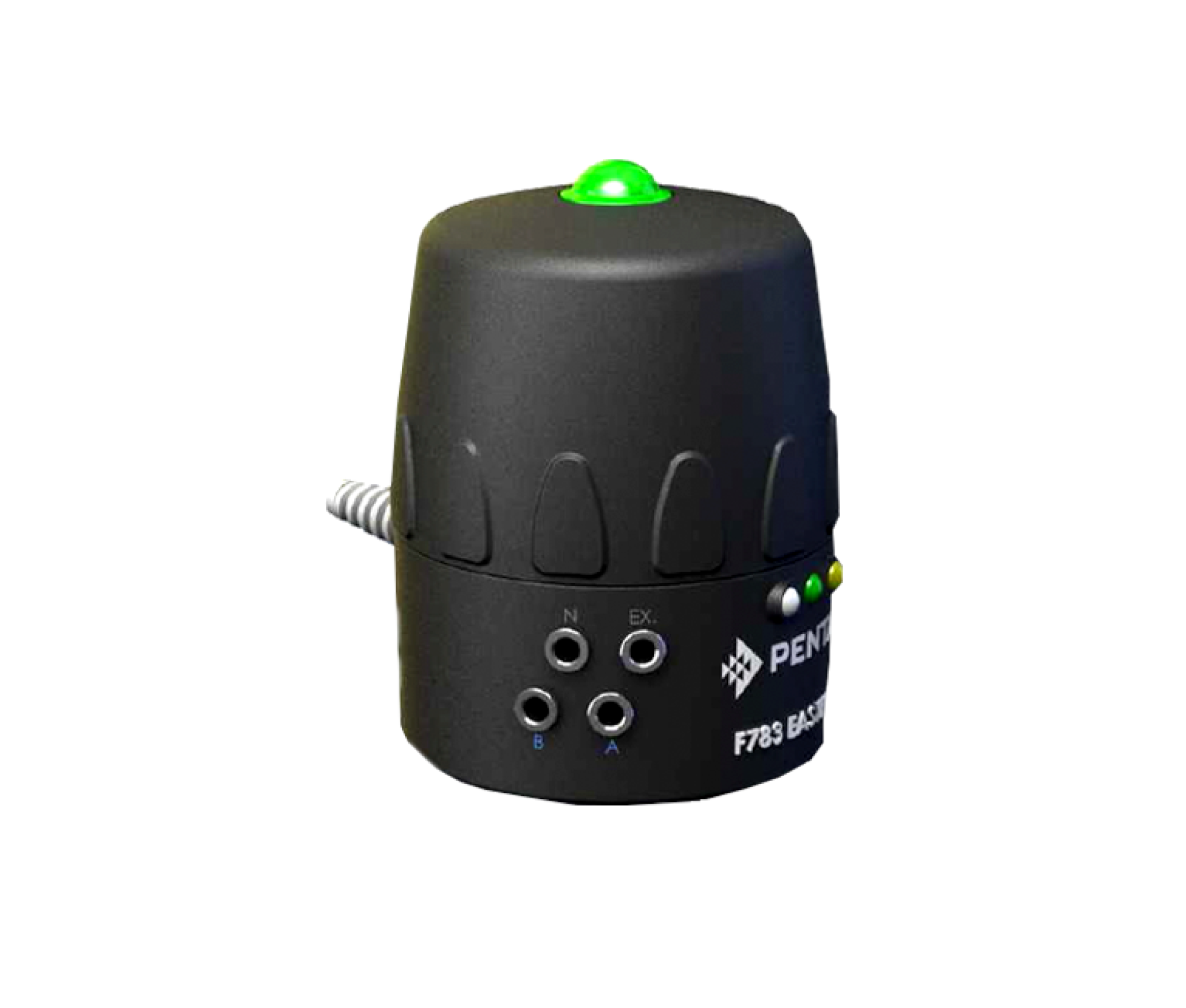

VALVE CONTROL HEADS EASYMIND 2.0 F783E2.0
Stainless Steel Valves

VALVE CONTROL HEADS EASYMIND 2.0 F783E2.0

BENEFITS

  • Low power consumption.
  • Modular design.
  • Worldwide recognized BUS protocols.
  • Fully adjustable.
  • Corrosion-resistant materials.


FEATURES

  • Single 5/2 solenoid valve (as standard).
  • Dual directional speed controls.
  • Lockable manual override.
  • Install control module, switches and solenoid.
  • Linear and rotary configuration.
  • Robust IP 65/67 enclosure.
  • Enclosure safety ventilation.
  • High visibility valve status LED indicators (side mounted).
  • Optional HI-VIZ position LED indicator (top mounted; retrofittable).
  • Zone 22 hazardous area certification.
  • Optional Intrinsically Safe (IS) component option (uncertified assembly).
  • Semiconductor Nylon enclosure for Ex versions.
  • Cable entry options PG7, PG9, M16, M20 (others on request).
  • Internal short circuit protection.
  • 24 V DC/AC, 110 V AC or BUS-specific voltages.

Control heads can be supplied in a number of different configurations such as with solenoid or without solenoid or modular and single or double switching. Upon request, different types and brands of switches can also be installed, for example proximity (std), fine or micro switch etc. the maximum temperature of the control head is limited by the solenoid rated at 50 °C (122 °F).

Südmo Valf Kontrol Başlıkları, bira fabrikası, şaraphane, süt ürünleri, içecek ve gıda endüstrilerinde çok çeşitli valflerin otomatik ve kontrollü çalışması için kullanılır.
