VALVE CONTROL UNITS-Stainless Steel Valves

Stainless Steel Valves

VALVE CONTROL UNITS

```html

BENEFITS

Reliable system process monitoring
Simple, intuitive and fast application
Process valve switching times, internal inlet and outlet air sections adjustable
Bright LED indicator visible from all sides for easy detection of valve seat in all open/closed/seat lift cleaning positions
Simplified valve maintenance with externally activated service function
Customized settings with built-in microcontroller
Short air hoses and cable routes for clear structure and reduced installation costs
Fast and easy fault analysis and correction
Reduction of system downtime
Small and compact to fit in tight spaces
NEW: Intelli-Pulse Flush (IPF)
Optimization of cleaning performance / Savings of water and CIP cleaning detergents through oscillating seat lift
NEW: IO-Link communication via "Events"
, e.g. number of switching cycles, switching time delays reported to control -> preventive maintenance for more efficient process

```

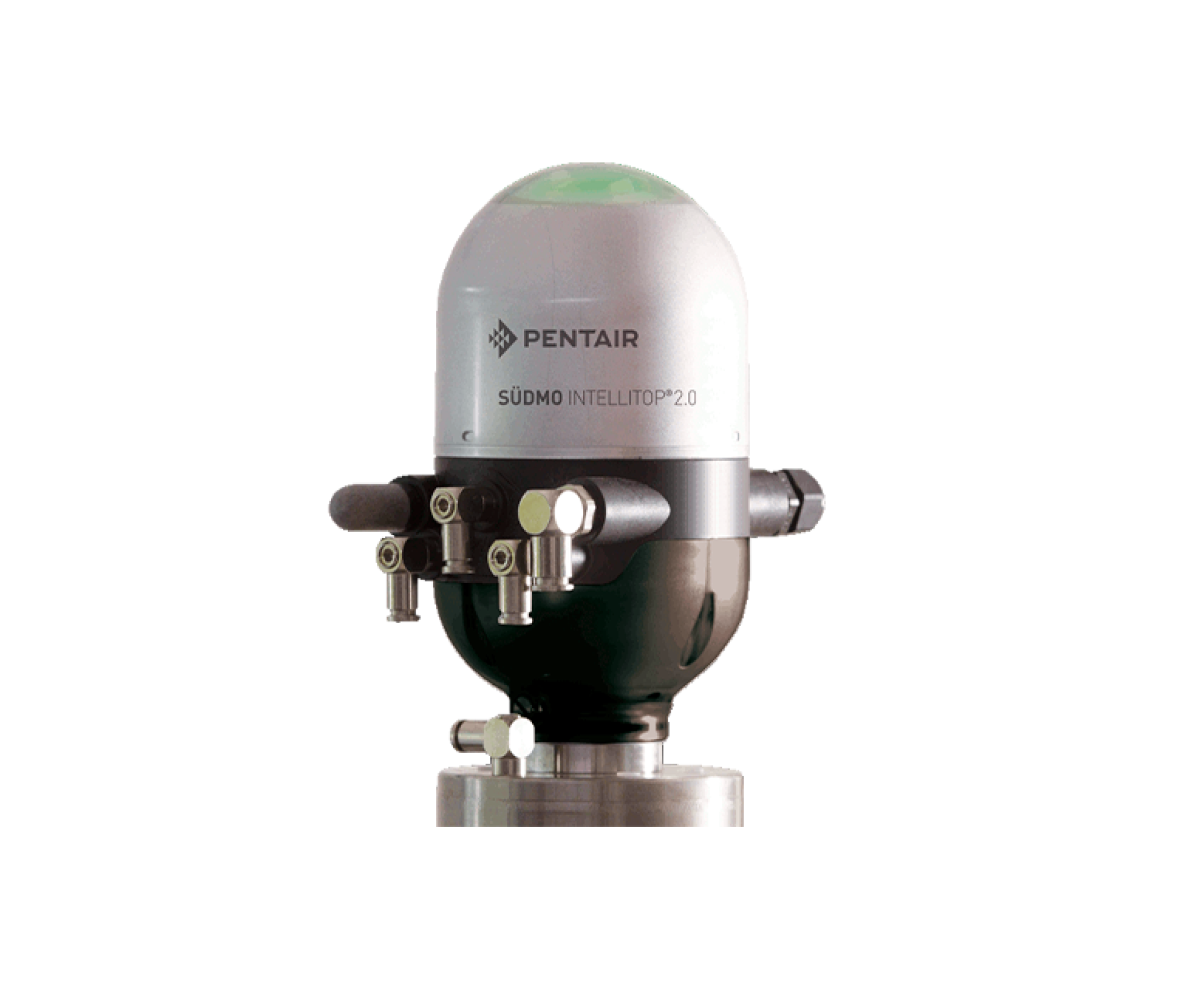

Pentair Südmo's IntelliTop 2.0 control unit combines process valve triggering and monitoring in a single unit. These decentralized control heads located in process valves make it easy to reduce hose and cable lengths that simplify system design and reduce installation work.

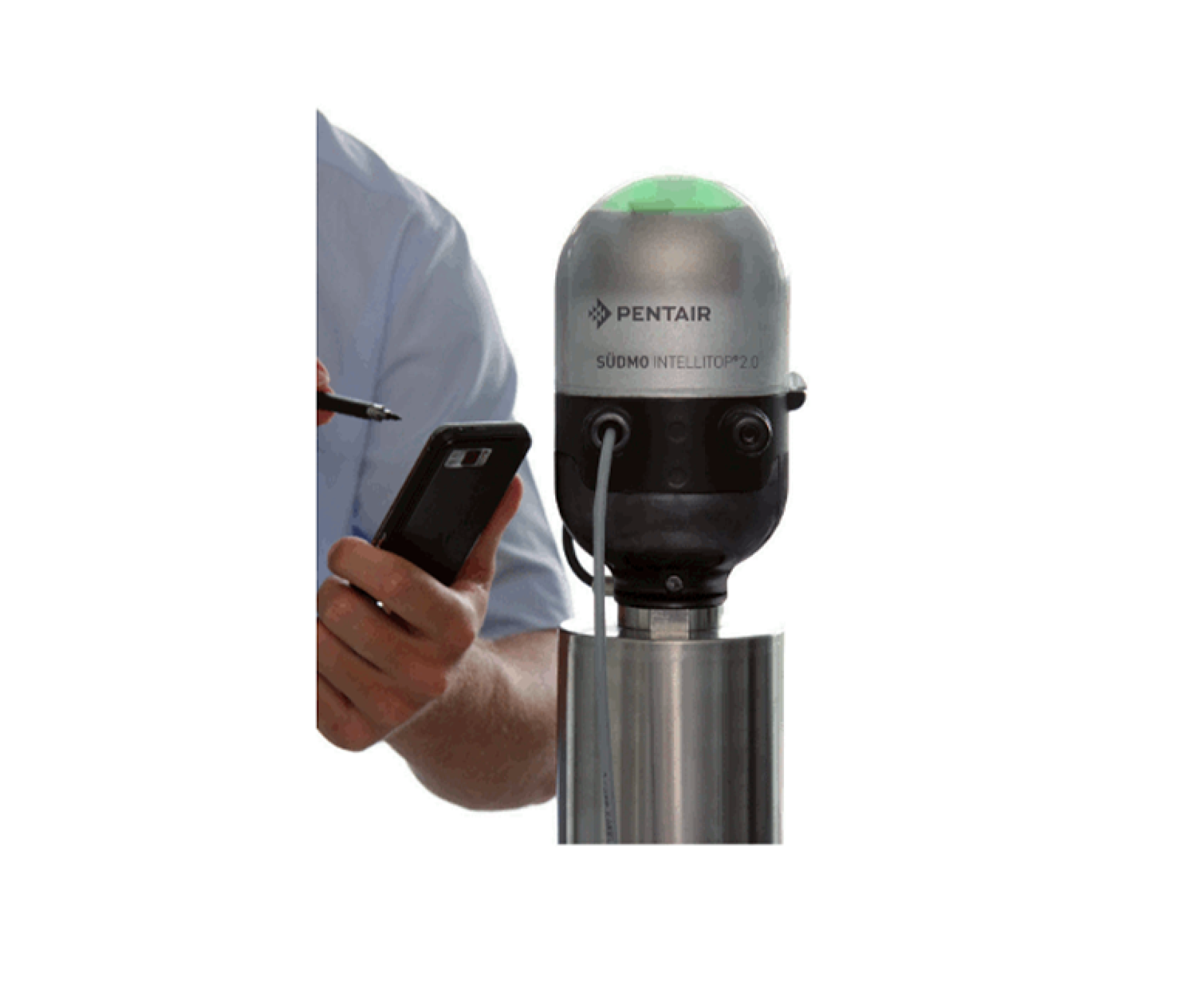

Valve position and communication errors can be easily seen from any angle or distance. Green, yellow and red signal colors can be assigned for the specific needs of each process system.

The innovative Intelli-Pulse-Flush (IPF) function can also be enabled for removable dual-seated valves. The vibrating valve disk movement not only optimally cleans all valve areas due to continuous flow turbulence, but also provides sustainable savings from water and CIP cleaning detergents. IntelliTop 2.0's travel measurement system monitors up to three switching positions of the process valve. Simple setup with a programmable three-button interface provides a fast and reliable process start. A convenient service function provides fast and reliable process valve service with the control head always closed for protection.

Recently, communication via IO-Link is also available, allowing the recording of additional process parameters such as delays in valve switching times. This enables early detection of wear and tear on seals at an early stage for better planned preventive maintenance. IntelliTop 2.0's small size and state-of-the-art product industrial design give this system an attractive appearance while providing optimal external cleanliness. The name IntelliTop 2.0 is iconic not only for intelligence but also for flexibility, operator friendliness, cost efficiency and process reliability.

Proses vanalarının kullanıldığı ve kontrol edildiği her yerde.
